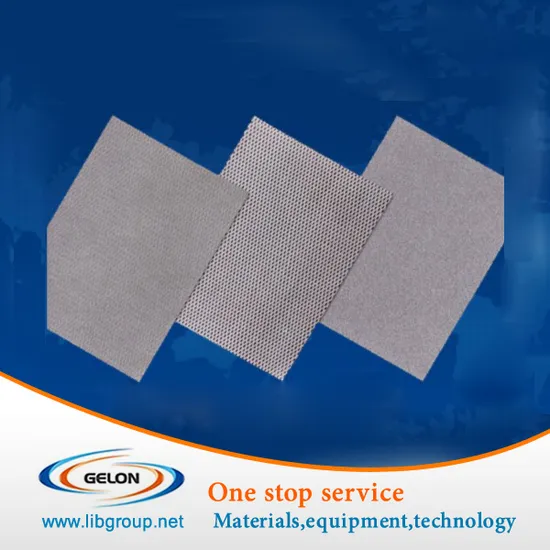

Nickel Foam for Battery Cathode Substrate (1000mm length X 300mm width X 1.6mm thickness)

Basic Info.

Model NO.	FN-I foamed nickel
Function	Short Circuit Protection
Materials	Nickel
Brand	Gelon
Thickness(Mm)	<=2.5
Width(Mm)	<=1000
Appearance	Silver Gray
Density(G/M2)	>=250
Transport Package	Standard Exporting Package
Specification	nickel foam
Trademark	Gelon
Origin	Shandong China
Production Capacity	200ton/Month

Product Description

1. Thickness(mm): <=2.5
2. Width(mm): <=1000
3. Appearance: Silver gray
4. Density(G/M2): >=250
PROJECT EXPERIENCES:
Bolivia TURN KEY PROJECT SUCCESSFULLY COMPLETE
Now we have successfully completed the lithium battery production line project (including mobile phone battery and E-bike battery production line project, and lab. Line ) with Bolivia government. All of the materials, equipments and technology that used in the project is provided by our company.
The produced battery performance is very good, highly praised by Bolivia president.
And president personally attend the celebration dinner and take photos with our manager as a commemorate.
Next project we will cooperate with Indonesia government.
We can supply one stop solution ( turn key project) for you.
1. Full set of lithium battery materials, including:
LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and other cathode&anode battery materials; Aluminum foil, copper foils, battery separator, etc.
2. Full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine, etc.
3. Full set of lithium battery technology.
We can design the laboratory and production line, according to customer's request.
Any more comments, please feel free to contact me:
86-15192929926

	FN -I
Hole Number(PPI)	110
Actural Hole No.(PPI)	100-120
Density(g/m2)	≥250
Thickness(mm)	≤2.5
Width(mm)	≤1000
Appearance	Silver gray
Tensile strength(N/20mm )	Longitudinal≥30 Transversal≥20
Elongation(%)	Longitudinal≥5 Transversal≥12
Resistance(mΩ/100mm*10mm)	Longitudinal≤65 Transversal≤85
Composition(wt%)	Cu	C	Si	Fe	S	Ni+Co
	≤0.010	≤0.050	≤0.005	≤0.030	≤0.008	Balance
SEM pic (30X)
SEM pic (1000X)
